- 300A Split Core Current Transformer (including Fly Lead)

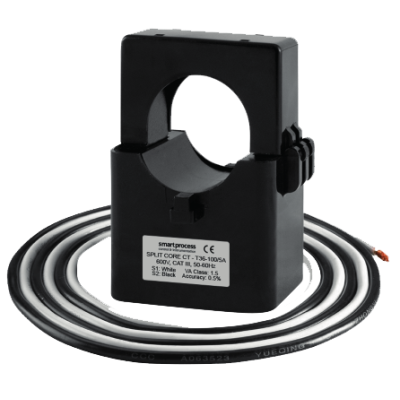

300A Split Core Current Transformer (including Fly Lead)
SKU: SCTK681B-35-300A
Split Core 35 mm Diameter Aperture | 300 A Primary | 2 m Fly Lead (2.5 mm² Wire) | Accuracy Class 1
These clip-top, split-core transformers work with any 5 A CT-operated meter. No need to break conductors—simply clamp around a single live conductor. Use one per phase for three-phase systems. The 35 mm opening fits up to 35 mm conductors, making it ideal for distribution boards, generator sets, control panels and switchgear.
Model & Application
Type: Split-core current transformer, clip-top design for rapid, error-free installation
Use case: Ideal for metering and energy-monitoring in compact switchboards, panels and distribution boards
Electrical Characteristics
Primary rated current: 300 A
Secondary rated current: 5 A
CT ratio: 300 A : 5 A (60 : 1)
Accuracy class: 1 (±1 % ratio error)
Rated burden (VA): 2.5 VA (for 300/5 ratio)
Output connections: White lead = S1, Black lead = S2
Mechanical Dimensions
Aperture (core opening): 35 mm (fits conductors up to 35 mm diameter)
Overall form factor: Slim, low-profile housing for tight spaces (see datasheet for full mechanical drawing)
Cable & Connection
Fly lead length: 2 m pre-wired cable for flexible placement
Cable type: UL1015, 20 AWG flexible PVC wire, 2.5 mm² conductor cross-section
Terminal cover: Integrated for added safety during installation
Environmental & Safety
Operating environment: Indoor use; see full datasheet for temperature and humidity limits
Standards compliance: Class 1 accuracy; meets relevant IEC safety and performance standards
- Accessory Product Type CT Clamps
- Commodity Code 90289090
- Dimensions (mm) (H x W x D) 24
