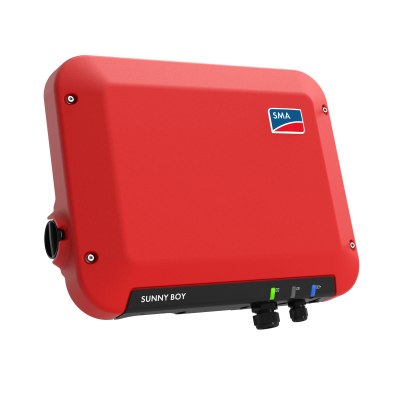

SMA Sunny Boy 2.0kW Solar Inverter - Single Phase with Smart Connect

• Manufacturer SMA Solar
• Phases 1 Phase
• Power Rating kW 2
• Inverter Type String Inverter
• Built in DC Yes
• No. of MPPT 1
• Built in Communication Integrated
• Off-Grid Compatible Yes
• Commodity Code 85044085
• Dimensions (mm) (H x W x D) 357 x 460 x 122

It's so easy to reap the benefits of solar power: The completely redesigned 1.5/2.0/2.5 Sunny Boy inverter is perfect for customers who want to take full advantage of their small PV system. Among other features, it enables an increase in consumption of self-generated power, allows versatile uses, and is very easy to integrate into the home network. In addition, its innovative design and new communication concept offer many advantages during installation and commissioning. Thanks to direct communication with the SMA Energy Meter, both limitation to 70 per cent, which is required in Germany, and limitation to 0 percent is possible.

Easy to use

The innovative design of the Sunny Boy inverter 1.5/2.0/2.5 is not only easy to install, but also allows for quick DC and AC connections. For example, because it weighs just 9 kg, it can be suspended from just two screws, with no additional wall mounting bracket. Commissioning is equally easy because the integrated user interface (Web UI) makes it possible to choose the necessary settings in next to no time – without opening the cover.

• Rapid commissioning with the intuitive Web UI
• Easy installation thanks to a low weight of just 9 kg and an intelligent connection concept
• Broad input voltage range of 80 to 600 V
• Flexibility in choice of module

Informative

With its focus on what really matters, the Sunny Boy inverter 1.5/2.0/2.5 also offers impressive communication features. The intuitive user interface (Web UI) makes it possible to monitor system data on any smartphone, tablet, laptop or traditional PC. This enables the user to choose between local and online monitoring via Sunny Places and Sunny Portal.

• New communication concept thanks to Web U
• System data monitoring possible on all smartphones and tablet
• Choose between local and online monitoring via Sunny Portal and Sunny Places
• Factory-integrated Ethernet and WLAN interface
• Professional Monitoring via Webconnect with the Sunny Portal Professional Package

Sample calculation with SUNNY DESIGN

Whether it’s a small PV system with 1 to 2 kW output or a system with 6 kW—the new Sunny Boy is the ideal solution. Sunny Design enables users to calculate their desired system size using individual d

SMA Smart Connected

With SMA Smart Connected, SMA is the first manufacturer to offer free and automatic inverter monitoring that helps installers provide customers with a quick, targeted service. If an inverter fails, SMA proactively informs the PV system owner and the installer. In this way, PV system owners and installers benefit from minimized diagnosis and downtime. If it is necessary to replace the inverter, SMA sends a replacement device fast and free of charge.
