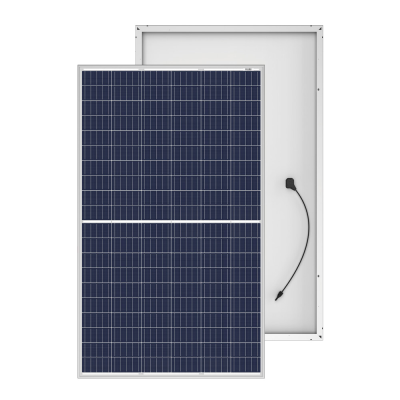

Trina Solar 285W Half Cut Poly Solar Module - Silver Frame/White Backsheet
SKU: TSM-285PE06H


Ideal for large scale installations:
- Reduce BOS cost with higher power bin and 1500V system voltage
Half-cell design brings higher efficiency:
- Low cell connection power losses due to half-cell layout (120 multicrystalline)
- LRF(Light Redirecting Film) integrated to gain more power, need avoid light sensitive case
- Low thermal coefficients for greater energy production at high operating temperature
Highly reliable due to stringent quality control:
- Over 30 in-house tests (UV, TC, HF etc)
- Internal test requirement of Trina more stringent than certification authority
- PID resistant
- 100% EL double inspection
Certified to withstand the most challenging environmental conditions
- Manufacturer Trina Solar
- Weight 18.0 kg
- Material Polycrystalline
- Frame Colour Silver
- Backsheet Colour White
- Panel Mounting Type On Roof / Ground
- Commodity Code 85414090
- Dimensions (mm) (H x W x D) 1690 x 996 x 35
