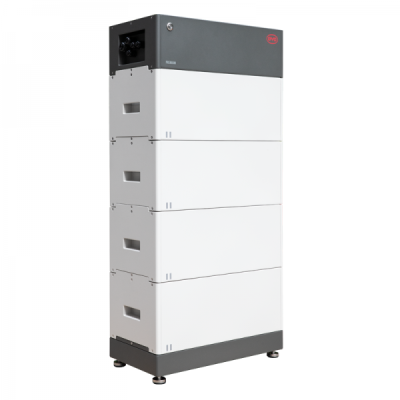

BYD 11.0 kWh HVM Battery Box Premium - BCU & Batteries


battery box premium BYD 11KW HVM

BYD 11.0 kWh HVM Battery, Base and BCU package consists of:


BYD Battery Box Premium HVM 2.76kWh Lithium Battery (x4)

Capable of High-Powered Emergency-Backup and Off-Grid Functionality.

  • Highest Efficiency Thanks to a Real High-Voltage Series Connection
  • The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
  • Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
  • Two Distinct Modules to Cover the Complete Range of System Sizes
  • Highest Safety Standards like VDE 2510-50


BYD Battery Box Premium HVM/HVS Battery Base and Control Unit

  • The BYD HVM/HVS range is built up using the control unit and base then adding multiple batteries to the system, this product consists of the PDU and base. 1pcs is required per system


Battery Module:HVM (2.76 kWh / 51.2 V / 38 kg)
Number of Modules:4
Usable Energy [1]:11.04 kWh
Max Output Current [2]:40 A
Peak Output Current [2]:75 A, 3 s
Nominal Voltage:204 V
Operating Voltage:160~230 V
Dimensions (H/W/D):1228 x 585 x 298 mm
Weight:167 kg
Operating Temperature:-10 °C ~ +50°C
Battery Cell Technology:Lithium Iron Phosphate (cobalt-free)
Enclosure Protection Rating:IP55
Round-trip Efficiency:≥96%
Certification:VDE2510-50 / IEC62619 / CEC / CE / UN38.3
Applications:ON Grid / ON Grid + Backup / OFF Grid



Login to see Trade Prices
  • Manufacturer BYD
Product code Product name Stock availability Due stock Individual price ( Inc VAT ) Quantity in bundle
BYD-HVM-2.76 BYD Battery Box Premium HVM 2.76kWh Lithium Battery AVAILABLE TO ORDER - CONTACT US 4
BYD-HV-BCU BYD Battery Box Premium HVM/HVS Battery Base and Control Unit 148 In stock, contact us for more 1
