BYD 12.0 kWh LVS Battery Box Premium - BCU & Batteries


battery box premium BYD 12KW LVS

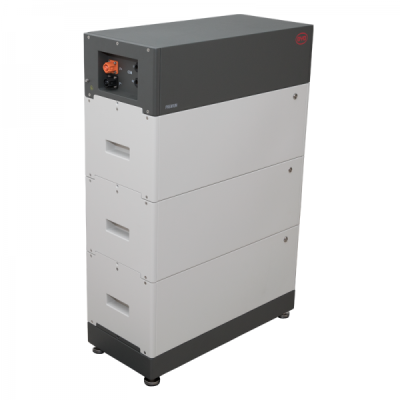

BYD B-Box Premium LVS 12.0 battery storage 12.0 kWh - consists of: BYD-LVS-4.0 (x3) & BYD-LVS-PDU (x1)

The BYD Battery-Box Premium LVS is a lithium iron phosphate (LFP) battery pack for use with an external inverter.

  • Scalable from 4 kWh to 256 kWh
  • Maximum Flexibility for any Application with up to 64 Modules Connected in Parallel
  • Compatible with Market Leading 1 and 3 Phase Inverters
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power
  • Capable of High-Powered Emergency-Backup and Off-Grid Function
  • Patented Internal Plug Design Requires No Additional Wiring
  • Self-Consumption Optimization for Residential and Commercial Applications


Number of Modules:3
Usable Energy [1]:12 kWh
Max Output Current [2]:195 A
Peak Output Current [2]:270 A, 5 s
Nominal Voltage:51.2 V
Operating Voltage:40-57,6 V
Dimensions (H/W/D):944 x 650 x 298 mm
Weight:154 kg
Operating Temperature:-10 °C ~ +50°C
Battery Cell Technology:Lithium Iron Phosphate (cobalt-free)
Communication:CAN / RS485
Enclosure Protection Rating:IP55
Round-trip Efficiency:≥95%
Scalability:Max. 64 in Parallel (256 kWh)
Certification:VDE2510-50 / IEC62619 / CE / CEC / UN38.3
Applications:ON Grid / ON Grid + Backup / OFF Grid



Login to see Trade Prices
  • Manufacturer BYD
Product code Product name Stock availability Due stock Individual price ( Inc VAT ) Quantity in bundle

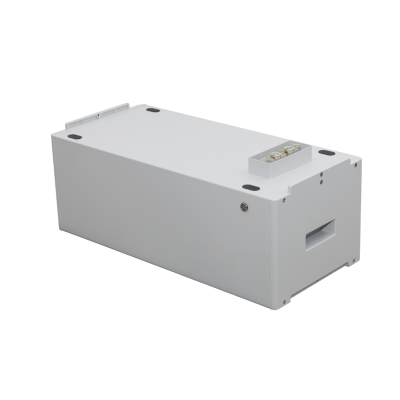

BYD-LVS-4.0 BYD Battery Box Premium LVS 4.0kWh Lithium Battery 121 In stock, contact us for more 3

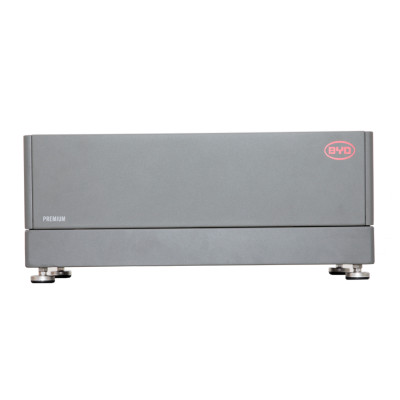

BYD-LVS-PDU BYD Battery Box Premium LVS Battery Base and Control Unit 99 In stock, contact us for more 1
