BYD 19.3 kWh HVM Battery Box Premium - BCU & Batteries

SKU: BYD-HVM-19.3

NEW

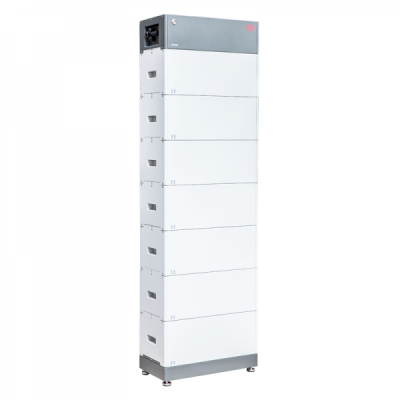

BYD 19.3 kWh HVM Battery, Base and BCU package consists of:

BYD Battery Box Premium HVM 2.76kWh Lithium Battery (x7)
SKU: BYD-HVM-2.76

Capable of High-Powered Emergency-Backup and Off-Grid Functionality.

Highest Efficiency Thanks to a Real High-Voltage Series Connection
The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
Two Distinct Modules to Cover the Complete Range of System Sizes
Highest Safety Standards like VDE 2510-50

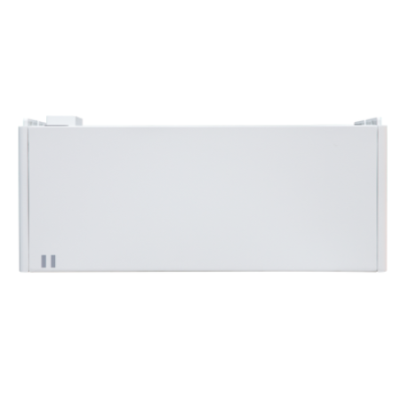

BYD Battery Box Premium HVM/HVS Battery Base and Control Unit
SKU: BYD-HV-BCU

The BYD HVM/HVS range is built up using the control unit and base then adding multiple batteries to the system, this product consists of the PDU and base. 1pcs is required per system

Battery Module:	HVM (2.76 kWh / 51.2 V / 38 kg)
Number of Modules:	7
Usable Energy [1]:	19.32 kWh
Max Output Current [2]:	40 A
Peak Output Current [2]:	75 A, 3 s
Nominal Voltage:	358 V
Operating Voltage:	280~403 V
Dimensions (H/W/D):	1927 x 585 x 298 mm
Weight:	281 kg
Operating Temperature:	-10 °C ~ +50°C
Battery Cell Technology:	Lithium Iron Phosphate (cobalt-free)
Communication:	CAN/RS485
Enclosure Protection Rating:	IP55
Round-trip Efficiency:	≥96%
Certification:	VDE2510-50 / IEC62619 / CEC / CE / UN38.3
Applications:	ON Grid / ON Grid + Backup / OFF Grid

Seen a better price?

	Product code	Product name	Stock availability	Due stock	Individual price ( Inc VAT )	Quantity in bundle
	BYD-HVM-2.76	BYD Battery Box Premium HVM 2.76kWh Lithium Battery	AVAILABLE TO ORDER - CONTACT US		Login to see Trade Prices	7
	BYD-HV-BCU	BYD Battery Box Premium HVM/HVS Battery Base and Control Unit	148 In stock, contact us for more		Login to see Trade Prices	1
