Renusol

FS10-S Base Rail 1389mm

Be the first to review this product

MSRP £9.29 In stock
Price
£8.37 £10.04 inc VAT

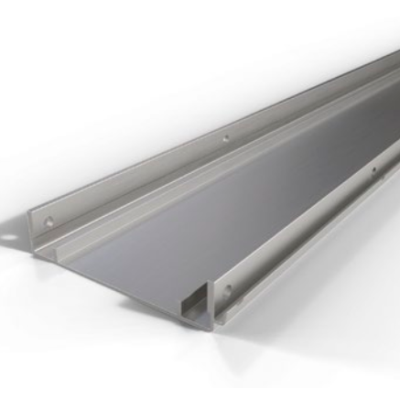

Renusol FS10-S Base Rail 1389mm (Example Image) Renusol FS10-S Base Rail 1389mm (Example Image) Renusol FS Range (Example Image) Renusol FS Range (Example Image)
Renusol FS10-S Base Rail 1389mm (Example Image)
Renusol FS10-S Base Rail 1389mm (Example Image)

Renusol FS10-S Base Rail 1389mm

Payment Options £8.37

Information

Information

Thanks to the short support rails, the installation adapts to the surface of the roof like a chain. The innovative rail connectors counterbalance any potential consequences of temperature expansion.

• A range of rail lengths for each system depending on the shadow angles
• Easy to transport both in storage and on site

The FS10S provides everything one might need on a flat roof. The innovative connection between rail and connector compensates temperature dilatation. Compact packing provides benefits in logistics as well as warehousing and the quick installation amazes everybody. This all-rounder offers installation on any flat roof, even on trapezoidal metal sheet and in regions with high snow load, for a surprising competitive price.

Compact

• Short rails to avoid temperature dilatation
• Only 5 system components
• For all PV panel heights

Quick and easy

• Innovative connection without nuts
• Wind deflector installation without drilling
• High mounting tolerances

Versatile

• 10° and 18° angle of inclination
• Installation on trapezoidal sheet possible
• Additional support for high snow loads
• Lightning load capacity tested

Technical Specification

Technical Specification

Country of Manufacture Germany
Dimensions (mm) 1389
Mounting Type Flat Roof
SKU REN-500400
Weight (kgs) 5
