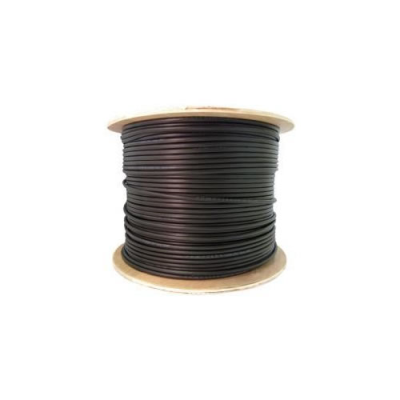

Solar Cable - Black 4.0mm - 500 Meter Reel

The 4mm black Solar Cable comes in a 500m reel and gives the perfect amount for any residential solar system, working in perfect harmony with SunClix or Staubli connectors.

• TUV Approved
• Conductor: Tinned copper class 5 CEI EN 60228 (CEI 20-29)
• Insulation: Halogen-free elastomer TÜV pfg 1169/08.2007 CEI EN 50363 (CEI 20-11)
• Outer sheath: Halogen-free elastomer TÜV pfg 1169/08.2007 CEI EN 50363 (CEI 20-11)
• Min bending radius: Cable fix standing 15 x Ø cable, move standing 6 x Ø cable
• Working temperature: -40 °C +90 °C
• Maximum short circuit temperature: +200 °C (5s Max)
• Test tension: 6.500 Vac 15.000 Vdc
• Electric resistance: test according to CEI 20-29 EN60228 Cl. 5
• Vertical N.P. test: test according to CEI EN 60332-1-2
