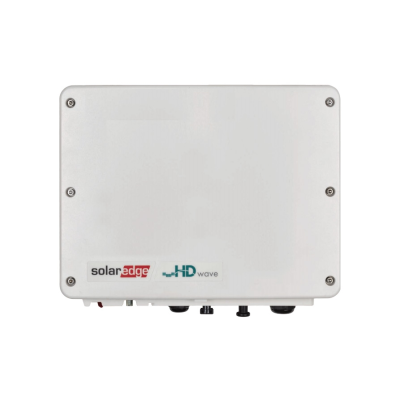

SolarEdge HD-Wave 2.2kW Solar Inverter - 1 Phase with SetApp

• Manufacturer SolarEdge Technologies
• Phases 1 Phase
• Power Rating kW 2.2
• Inverter Type Optimised Inverter
• Built in DC Yes
• No. of MPPT N/A
• Built in Communication Optional
• Commodity Code 85044085
• Dimensions (mm) (H x W x D) 280 x 370 x 142

SolarEdge’s Innovative Inverter Topology

Because Maximum Power Point Tracking and voltage management are handled separately for each solar module by the SolarEdge power optimiser, the single-phase inverter is only responsible for DC to AC inversion. Consequently, it is a simpler, more cost-effective, more reliable solar inverter. The fixed string voltage ensures operation at the highest efficiency at all times independent of string length and temperature.

In addition to its functionality as a DC-optimised PV inverter, the single-phase inverter also manages battery and system energy as part of SolarEdge’s StorEdge solution.

HD-Wave Technology: A New Era for PV Inverters

SolarEdge’s latest generation of single-phase inverters is designed using a novel power conversion technology that is based on a distributed switching and powerful DSP processing. The inverter is able to synthesise a clean sine wave that leads to a dramatic reduction in the magnetics and heavy cooling elements. The result is an even smaller and lighter inverter for simplified shipping and storing, and easy one-person installation. The record-breaking 99% efficiency allows more energy production for an improved ROI.

Easy Inverter Commissioning with Inverter SetApp

SolarEdge single-phase inverters now have a smart new commissioning method. Inverter commissioning is done directly through a smartphone using the intuitive SetApp mobile application. Take your inverter commissioning to the next level. Learn more about SetApp.

Inverter Highlights: Specifically designed to work with SolarEdge power optimisers

• 2.2kW to 6kW inverter range
• 99% weighted efficiency (33%-50% fewer losses than the market standard)
• Small, lightweight, and easy to install
• Up to 155% oversizing allowed
• High reliability due to lower heat dissipation
• Advanced safety features, including integrated arc fault protection
• Quick and easy inverter commissioning directly from your smartphone using the SolarEdge SetApp
• Standard 12-year warranty (extendable to 20 or 25 years)
• Built-in module-level monitoring
• Internet communication via Ethernet or wireless connectivity (using optional Wi-Fi, ZigBee® or Cellular Plug-ins)
• Manages PV production, battery storage, and smart energy products
• IP65 – suitable for outdoor and indoor installations
