Renusol MS+ Portrait 400 mm (Set)

SKU: REN-420421

REN-420421Renusol MS+ Portrait 400mm

Renusol SHORT 400mm RAIL - REN-420421

Vertical PV Module Orientation - PV modules with a frame height of 30 to 50 mm are attached to the MS + P mounting system in portrait (standing) on the trapezoidal sheet. For installation without pilot drilling the set includes self-tapping screws that fix the MS+P PV mounting system directly to the trapezoidal sheet. Readymade kits are suitable for the installation of PV systems on trapezoidal sheet steel and / or aluminium in various thicknesses.

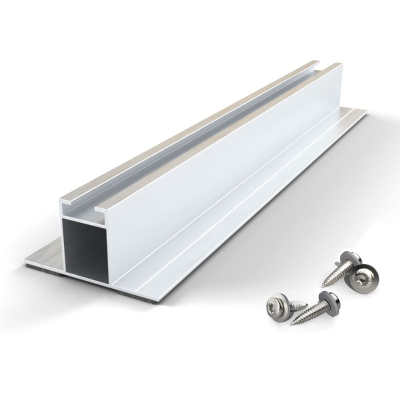

This high quality Renusol MS+ Portrait 400 mm set consists of Metasole plates and REN-400281 (SW8 6.0×25 E16) screws. We highly recommend that Renusol mounting equipment isn't used with mounting equipment from other suppliers. Doing so will void the warranty of the mounting system.

Seen a better price?
Login to see Trade Prices
  • Manufacturer Renusol
  • Mounting Part Mounting Rail
  • Commodity Code 76042100
  • Dimensions (mm) (H x W x D) 400 X 77 X 39

Attachment to installation surfaceAttachment with screw
Type of roof Pitched roof
Type of existing roof coveringTrapezoidal metal sheet
Trapezoidal sheet material  Aluminum; Steel
Material strength aluminum sheet 0 50 - 1 50 mm
Material strength steel sheet 0 40 - 1 13 mm
Minimum width of raised bead12 mm
Installatin without pre-drillingYes
Module orientation on roof  Vertical (Portrait)
Range of horizontal adjustment320 mm
Can be use with product groupsMS+
Additional articles in the setR400403; R400280
