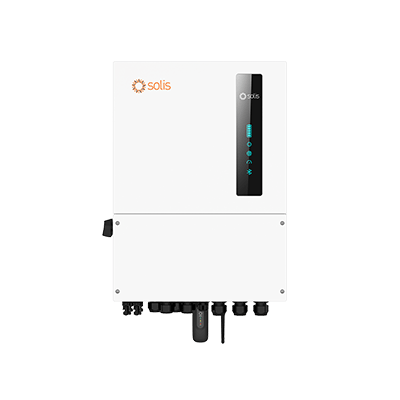

Solis S6 30kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
SKU: S6-EH3P30K-H-EU
Solis S6 30kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN), High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(30-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.
- Application Commercial
- Manufacturer Solis
- Inverter Type Hybrid Inverter
- No. of MPPT 4
- Commodity Code 85044086
- Dimensions (mm) (H x W x D) 530 x 880 x 290
Technical Features
- 4 Integrated MPPTs and 8 strings with string current capacity of up to 20A
- Backup port supports 1.6 times/2 seconds overload
- Supports maximum 96kW usable PV input power
- Enables peak shaving control in both "self-use" and "generator" modes
- Compatible with a wide voltage range to accommodate various batteries
- Increased battery protection and operation features to extend battery life
- Allows parallel operation of up to 6 units for both on-grid and off-grid application
- Generator connectivity with multiple input methods and automatic generator On/Off control
- Maximum charge/discharge current of up to 140A/70A+70A on two independently controlled battery ports
