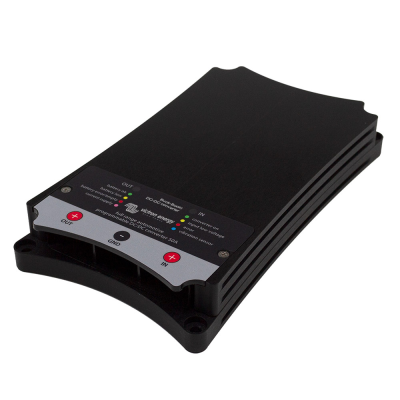

Victron 50A Buck-Boost Non Isolated DC-DC Converter
DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. The 50A Buck-Boost is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.
- Manufacturer Victron Energy
- Commodity Code 85044090
- Dimensions (mm) (H x W x D) 213 x 120 x 30
- Input/Output Voltage 12V to 24V
- Isolated No
One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.
The converter can be fully programmed by means of a simple and user-friendly PC application. (Requires USB type A male to USB type B male cable).
‘Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
