SKU: VBB160040010

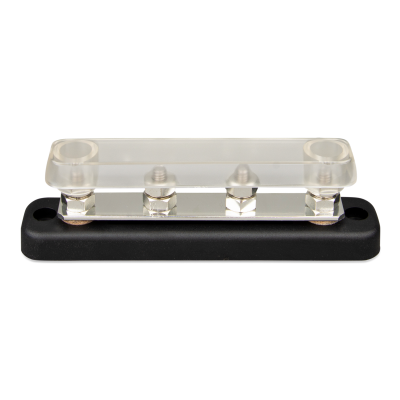

The Victron Busbar 600A 4P cover enhances safety and organisation in electrical installations. With a robust design and a high current rating of 600A, it supports heavy-duty applications. Its four-pole configuration allows versatile connectivity, making it a reliable choice for various projects.
You need to log in to access the data sheet, user manual, and warranty info.
Victron Energy Busbar 600 A with cover is a covered DC busbar assembly for distributing high-current connections in 70 VDC systems. It combines a tin-plated copper busbar with stainless steel terminals and a protective ABS cover.
Rated for up to 600 A maximum current for higher-current DC distribution applications.
Supplied with a cover for a more protected installation arrangement.
Busbar material is tin-plated copper, specified at 19 x 24 mm.
Terminal, flange nut and screw materials are stainless steel for the connection points.
Includes 3/8 inch / 9.53 mm high-current terminals and #8 / 4.2 mm screw terminals with specified torque values.
Victron Energy Busbar 600 A with cover. Maximum current 600 A, maximum voltage 70 VDC. Busbar material is tin-plated copper (19 x 24 mm). Base is ABS black, UL 94 V-0; cover is ABS black, UL 94 V-2. High-current terminals are 3/8 inch / 9.53 mm with recommended torque of 180 lbf·inch / 20 N·m. Screw terminals are #8 / 4.2 mm with recommended torque of 17 lbf-inch / 2 N·m. Weight and dimensions vary by terminal configuration.
Use within the stated 70 VDC maximum voltage and apply the specified tightening torques: 20 N·m for high-current terminals and 2 N·m for screw terminals. Ensure cable terminations match the stated terminal sizes. Covered version supplied for installation protection.
Manufacturer
Victron Energy
Commodity Code
8536901000
Dimensions (mm) (H x W x D)
90 x 240 x 70
Weight (kg)
0.72
