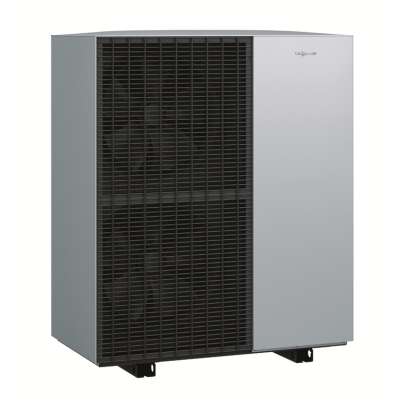

Viessmann Vitocal 150-A Air Source Heat Pump - Three Phase - 16Kw

SKU: VIE-Z023217

VIE-Z023217

Viessmann Vitocal 150-A Air Source Heat Pump - Three Phase 16kW

The new, innovative heat pump technology from Viessmann is more reliable, compact, and environmentally friendly than ever, efficiently harnessing environmental energy for both heating and cooling. With a flow temperature of up to 70°C, the Vitocal 150-A is ideal for retrofitting. When designed according to industry standards and equipped with a weather-compensated heating system, it may even allow the use of existing radiators. Key features include high energy efficiency, convenient app-based control, sustainable operation, and an attractive design.

Heating & Cooling

  • Outdoor unit sound pressure level: 33.5 dB(A) at 3 meters (standard heating mode, installed against one wall)
  • HYDRO AUTOCONTROL: Save space and simplify installation with a unique 4/3-way valve design
  • ONE BASE CONTROL: User-friendly and intuitive commissioning process
  • CoP (Coefficient of Performance) to EN 14511: up to 5.0 (A7/W35)
  • MCS SCoP: Up to 3.14 at 65°C
  • Flow temperature: Up to 70°C for excellent hot water comfort
  • Environmentally friendly refrigerant R290 (propane) with an ultra-low GWP100 (Global Warming Potential) of 0.02
  • Integrated energy management system

Login to see Trade Prices
  • Manufacturer Viessmann
  • Phases 3 Phase
  • Rated heating capacity 9.1kW
  • COP 4.9

  • Rated heating output
    • 2.1 to 14.9 kW
  • Highly suitable for modernisation
    • With 70 °C flow temperature (at an outside temperature down to -10 °C)
  • Climate Protect +++: Protects the environment and the climate
    • Environmentally responsible, natural refrigerant R290 (propane) with a particularly low GWP100 (global warming potential) of 0.02
  • OptiPerform
    • Reliable operation with high efficiency
  • Service Link
    • Guaranteed faster response time if a service is required
  • Low running costs due to high efficiency
    • COP (coefficient of performance) to EN 14511: up to 5.0 (at A7/W35)
  • 60 % less space required
    • Compared to comparable models
  • Cooling function
    • Heating and cooling in one
  • Integrated energy management system
    • Ensures transparency in energy consumption and costs
  • Easy operation via ViCare app
