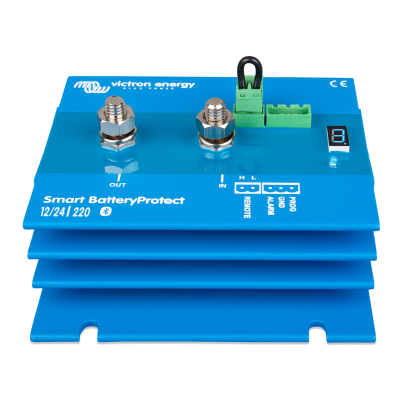

Victron Smart Battery Protect 12/24V-220A

SKU: BPR122022000

BPR122022000

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

Login to see Trade Prices
  • Manufacturer Victron Energy
  • Accessory Product Type Battery Protection
  • Commodity Code 85364190
  • Dimensions (mm) (H x W x D) 62 x 123 x 120

 When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled. The Smart Battery Protect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.
