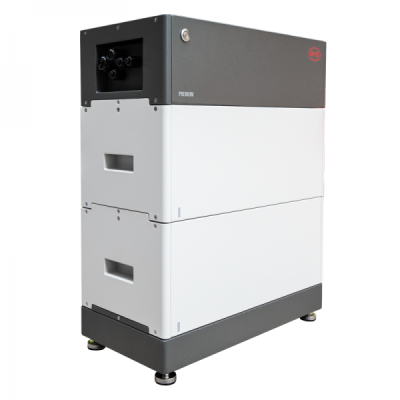

BYD 5.1 kWh HVS Battery Box Premium - BCU & Batteries

SKU: BYD-5-1-kWh-HVS-Battery-Bundle

battery box premium BYD 5.1KWH


BYD Battery Box Premium HVM/HVS Battery, Base and Control Unit package consists of the below:

BYD Battery Base and BCU

  • The BYD HVM/HVS range is built up using the control unit and base then adding multiple batteries to the system, this product consists of the PDU and base. 1pcs is required per system


BYD Battery Box Premium HVS 2.56kWh Lithium Battery
SKU: BYD-HVS-2.56 (x2)

  • In the high voltage versions of the BYD Battery-Box Premium Line, a differentiation is made between the smaller HVS and the larger HVM.
  • The capacities of the combinable batteries range from 5.1-12.8 kWh (HVS). Like its predecessors, the Battery-Box Premium HVS is based on lithium iron phosphate, one of the most reliable storage technologies. The battery has a modular structure and can be expanded in steps of 2.6 kWh (HVS). This means that there is nothing to prevent the storage being expanded at a later date. The floor mounting means that the installation and commissioning process can again be carried out quickly and easily.


Battery Module:HVS (2.56 kWh / 102.4 V / 38 kg)
Number of Modules:2
Usable Energy [1]:5.12 kWh
Max Output Current [2]:25 A
Peak Output Current [2]:50 A, 3 s
Nominal Voltage:204 V
Operating Voltage:160~230 V
Dimensions (H/W/D):762 x 585 x 298 mm
Weight:91 kg
Operating Temperature:-10 °C ~ +50°C
Battery Cell Technology:Lithium Iron Phosphate (cobalt-free)
Enclosure Protection Rating:IP55
Round-trip Efficiency:≥96%
Certification:VDE2510-50 / IEC62619 / CEC / CE / UN38.3
Applications:ON Grid / ON Grid + Backup / OFF Grid



Login to see Trade Prices
  • Manufacturer BYD
Product code Product name Stock availability Due stock Individual price ( Inc VAT ) Quantity in bundle
BYD-HV-BCU BYD Battery Box Premium HVM/HVS Battery Base and Control Unit 148 In stock, contact us for more 1
BYD-HVS-2.56 BYD Battery Box Premium HVS 2.56kWh Lithium Battery 76 In stock, contact us for more 2
