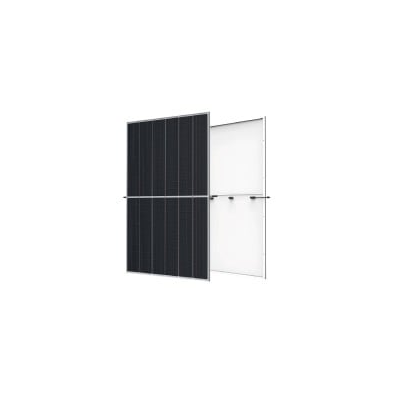

DMEGC Solar 710W Infinity 132 Cut Bi-Facial Dual Glass N-type Mono Solar Module - Silver Frame/White Backsheet

• Manufacturer DMEGC Solar
• Material Monocrystalline
• Frame Colour Silver
• Backsheet Colour White

Product Description – DMEGC Solar 710W Infinity 132 Cut Bi-Facial Dual Glass N-type Mono Solar Module – Silver Frame/White Backsheet

Installers looking to push array density and long-term output on ground-mount or commercial rooftops will find the DMEGC Solar 710W Infinity 132 Cut Bi-Facial Dual Glass N-type Mono Solar Module – Silver Frame/White Backsheet a high-value choice. Built on 132 half-cut G12 N-type cells, this dual-glass bifacial module reaches 710 W nameplate power and 22.9 % module efficiency within a 2 384 × 1 303 × 33 mm footprint. Its 2 mm/2 mm glass sandwich and silver anodised aluminium frame provide IP68 durability, front-side snow tolerance of 5 400 Pa and rear wind tolerance of 2 400 Pa, meeting IEC 61215/61730 plus extended-stress, ammonia, salt-mist and sand-abrasion tests.

Performance advantages

N-type, i-TOPCon technology virtually eliminates light-induced degradation: ≤ 1 % first year, ≤ 0.4 % each year thereafter, guaranteeing 87.4 % power after 30 years.

Bifacial gain up to 80 % ± 5 % from the 2 mm rear glass adds extra yield without extra strings.

Low-temp coefficient of –0.29 %/°C and a 42 ± 2 °C NMOT keep summer losses in check.

0–3 % positive tolerance ensures every module ships at or above its stated wattage.

Electrical highlights @ STC

Maximum power (Pmax): 710 W

Vmp / Imp: 40.76 V / 17.45 A

Voc / Isc: 48.82 V / 18.52 A

Maximum system voltage: 1 500 V DC

Overcurrent protection rating: 35 A

Installer-centric benefits

Higher kWp per string means fewer home-run cables and combiner boxes, lowering BOS cost.

Dual-glass construction provides better PID resistance and fire safety than backsheet designs, ideal for hot, humid or coastal sites.

Standard MC4-EVO 2A connectors and 4 mm² leads (portrait: 360 mm + / 200 mm –) speed field terminations; landscape 1 400 mm leads support tracker layouts.

Palletised logistics: 33 modules per pallet, 594 per 40 HQ; weight per module 37.7 kg.

Environmental & ESG credentials

Manufactured in a PFAS-free, low-carbon facility audited to ISO 9001, 14001, 45001, 50001 and SA 8000, supporting CSR-driven tenders.

Fully recyclable glass-glass stack aligns with circular-economy goals.

Warranty package

15-year product warranty on materials and workmanship.

30-year linear power warranty down to 87.4 % of initial output.

Ideal applications

Utility-scale bifacial trackers seeking sub-40 $/ MWh LCOE.

Commercial rooftops and carports limited by array area but requiring > 200 W/m² density.

Coastal, agricultural or heavy-industry sites needing robust ammonia, salt-mist and sand resistance.

Boost project IRR and minimise LCOE with the DMEGC Solar 710W Infinity 132 Cut Bi-Facial Dual Glass N-type Mono Solar Module – Silver Frame/White Backsheet—the high-efficiency, low-degradation panel engineered for 30 years of bankable energy.
