Pylon Force H1 Battery Management Unit

SKU: FC0500-40S

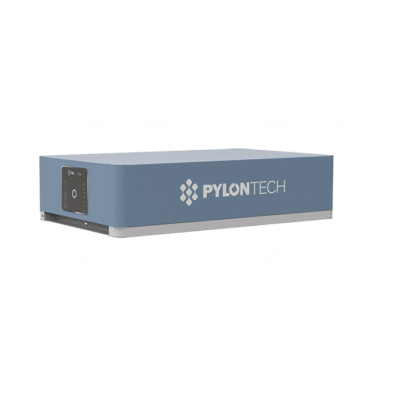

Pylontech Force H1 Battery Management Unit

Pylontech Force H1 BMS Controller is a component of the Force H1 range of ESS Modules and must be used with the FH48074 Battery Module/Cassette. BMS comes supplied with UP/US Cable Kit.

  • Cycle life: >5000 cycles @ 25°C with 90% DoD for daily cyclic applications
  • Working Temperature Range 0°C to 50°C with excellent discharge performance & cycle life
  • Storage temperature range -20~60°C
  • Suitable for indoor and covered outdoor (IP55) installation
  • Cathode material is made from LiFePO4 for safety performance and long cycle life
  • The BMS has protection functions including over discharge, over charge, over current and high/low temperature
  • Compatible with many available Hybrid inverters
  • Clean Energy Council Approved (CEC)
  • Modular design from 10.65kWh to 24.86kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors

Login to see Trade Prices
  • Manufacturer Pylon Technologies
  • Battery Chemistry Lithium-Ion
  • Commodity Code 85371010
  • Dimensions (mm) (H x W x D) 380 X 190 X 600
