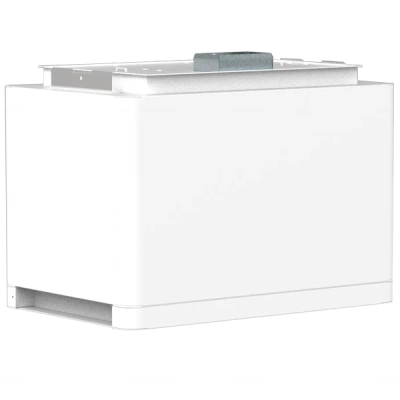

Pylon Force-FH2 3.55kWh Lithium Battery

SKU: FH9637M-FH2


The newly designed system provides easy connector to save valuable time for installers. The stacking system provides flexible configurations from 96V to 384V voltage and 7.1 kWh to 14.21kWh capacity.

The indoor/outdoor compatible feature provides more possibilities of installation. Ideal for large home and small commercial application.

Login to see Trade Prices
  • Manufacturer Pylon Technologies
  • Voltage 48V
  • Battery Chemistry Lithium-Ion
  • Commodity Code 85076000
  • Dimensions (mm) (H x W x D) 545 x 391 x 421

The Force H2 is the latest version of High voltage battery storage system from Pylontech. The new system design provides an easy to connect that saves time for installers. Ideal for large home and small commercial applications, the stacking system provides flexibles configurations from 96V to 384V and 7.1kWh to 14.21kWh capacity. In other words, 2 to 4 modules can be used per system and the battery management unit is required.


  • Flexible Module Design
  • Reliable Performance
  • 90% DoD with more usable capacity
  • IP 55 class protection

Technical Specifications:

  • Battery Type: Lithium Ion
  • Nominal Energy: 3552 Wh
  • Depth of discharge: 90.00 %
  • Voltage: 96 V
  • Continuous Discharge Rate (Normal Use): 1776 W
  • Maximum Discharge Rate (5 Minutes): 3840 W
  • Surge Discharge Rate (15 Seconds): 3840 W
  • Maximum Charge Rate (5 Minutes): 1776 W
