Fronius GEN24 Primo 10kW 230V Hybrid Inverter - 1 Phase

SKU: 4.210.147

4.210.147

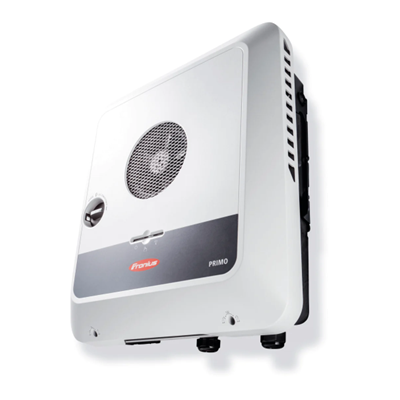

Fronius GEN24 Primo 10kW 230V Hybrid Inverter - 1 Phase



The Fronius Primo GEN24, single phase inverters, with power of between 3 and 10 kW, is the ideal inverter for private households. Includes an integrated basic backup power supply. Backup power is supplied to connected devices up to 3 kW via the PV Point socket, as long as the sun is shining.

The smart device design combined with intelligent software enables fast and flexible installation and delivers optimum yields, even when the PV modules are in the shade. What’s more, the integrated active cooling extends the service life of the inverters, securing your customers’ investment.

Seen a better price?
Login to see Trade Prices
  • Manufacturer Fronius
  • Phases 1 Phase
  • Inverter Type Hybrid Inverter
  • Dimensions (mm) (H x W x D) 595 x 529 x 180

Features


PV Point integrated basic backup power function.

GEN24 units include a power socket that is automatically supplied with electricity in the event of a power outage whilst the sun is shining.

  • Automatic activation in case of a grid outage
  • Costly additional installation work is not necessary
  • Supplies single-phase loads of up to 3 kW
  • Operates without battery (depending upon sunlight levels)

Active Cooling Technology

Using an innovative fan housing, which is integrated into a recess of a die-cast aluminium heat sink with specially arranged cooling fins.

  • Long service life for the inverter
  • Higher yields
  • Flexibility in system design

Dynamic Peak Manager

  • Uses MPP algorithm with tolerance of shading
  • Maximum yields even in the case of partial shading
  • Avoids the need for power optimisers

SuperFlex Design

  • Uses 2 MPPT trackers with a wide DC input range
  • Enables maximum flexibility in system design
  • Potential problems with different roof orientations and partial shade avoided

Monitoring & Communication

  • PV system monitoring using Fronius Solar.web allowing system data and potential for optimisation potential visible at all times
  • Energy Management using 4 digital I/Os to increase self-consumption
  • Open interfaces allow easy integration of third-party components such as heat pumps or Smart Home systems. These include Modbus RTU/TCP SunSpec, Fronius Solar API, LAN, WLAN

Configuration notes:

  • Export limitation is only possible with one GEN24 in a system (firmware update expected to resolve this)
