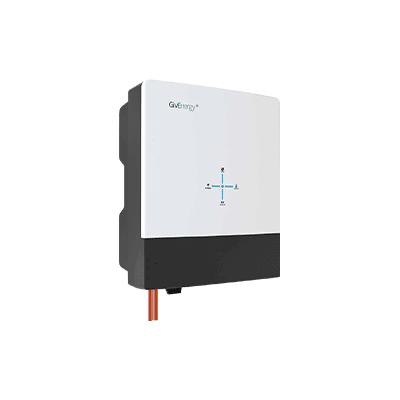

GivEnergy 3.6kW Single Phase Hybrid Inverter - GEN 3

SKU: GIV-HY3.6 G3

GIV-HY3.6 G3
PROMOTION

GivEnergy 3.6kW, Single Phase, Hybrid Inverter - GEN 3



Hybrid inverters are used to couple directly with the solar PV system to generate usable electricity in a property and to store any excess energy in a battery. The inverter is aims to minimise export by storing the excess energy in the battery during generation hours and to minimise import by discharging to meet demand in the property. The inverters include in-built WiFi and a LAN port for a hard-wired network connection.

The new generation of inverters offer a cleaner design, discretely enclosing the connection ports. Additionally, the Gen 3 has an increased max input current per string of 15A allowing for higher current panels to be utilised in system designs and an increased MPPT range.

The inverters are (HxWxD) 588 x 480 x 214D mm and weigh 32kg. The units are IP65-rated and backed by a 5-year warranty.



Images for illustration purposes only

Login to see Trade Prices
  • Promotion GivEnergy Batteries and Inverters
  • Manufacturer GivEnergy
  • Phases 1 Phase
  • Inverter Type Hybrid Inverter
  • Commodity Code 85044085
  • Dimensions (mm) (H x W x D) 440 x 260 x 480

AC attributes
Max power: 3.6kW
Max current: 16A
Number of phases: 1


DC attributes:
Max PV power: 7.5kW
Max Isc: 20A
Max I (per string): 15A
Max voltage: 580V
Start up voltage: 150V
No. of MPPTs: 2
MPPT Range: 120-550V


Battery:
Battery type: LiFePO4
Battery voltage range: 45-58V
Charge / discharge current: 65A / 81A
Max. Charge/Discharge: 3300W / 3600W


Backup Terminal Parameters (AC):
Nominal AC output power: 3600W
Nominal voltage: 230Vac
Max. output current: 16A
Automatic switch time: 10ms


System:
Max efficiency: 97.6%
Charge / discharge efficiency: 94% / 94%
IP rating: IP65
