GSE Portrait Half Frame - 1650/1135

SKU: ART105162

ART105162

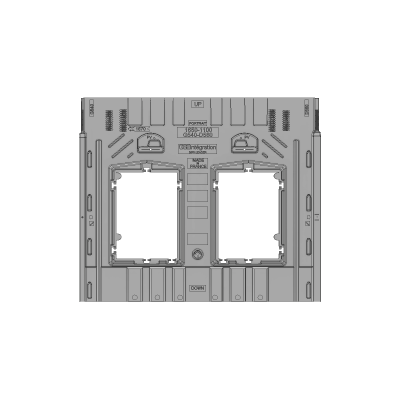

The GSE 1650 x 1135mm Half Portrait Frame facilitates the installation of solar PV modules as part of an integrated in-roof system. GSE introduced the half frame design in 2022 to keep-up with the ever-expanding PV module market. The nature of the design caters for larger, wider and more powerful modules which are becoming more commonplace with solar PV manufacturers.

The GSE In-Roof System enables module installation on every type of roof covering (curved tiles, interlocking, flat tiles, slates, metal, zinc, trapezoidal), as well as on new buildings. The system must be installed on the wooden or metallic substructure of the buildings and mounted on specific battens, adapted to climatic conditions. It can be mounted on slopes between 12° and 50°.

This system goes together quickly and easily. The plastic trays that interlock are fixed to battens, with the roof tiles fitting up to the flashing. The panels are then hooked onto the trays and clamped into place.

Key Features

  • Easy to install
  • Compatible with range of standard panels
  • Lightweight at 2-3kg /m2
  • 100 percent recyclable materials

Seen a better price?
Login to see Trade Prices
  • Manufacturer GSE
  • Mounting Type In Roof
  • Mounting Part In Roof - Landscape
  • Commodity Code 78060080
  • Dimensions (mm) (H x W x D) 1650 x 1135

PLEASE NOTE: 2 Frames are required per module.

The DPO 1605 / 1135 allows for greater adjustment for use with a larger range of panel sizes.

GSE In-Roof enables both portrait and landscape module installation on all roof types; curved, interlocking, flat and slates. The mounting frames can accommodate roof pitches between 12°-50° on both wooden and metal roof structures.

For Module Sizes:

  • Orientation: Portrait
  • Module Height: 1610 to 1800mm
  • Module Width: 1130 to 1135mm

Key Features:

  • Easy to install: modular fixing system
  • Quick to install: 3-5kW systems take as little as 6 hours
  • Flexible: achieve any desired configuration type
  • Lightweight: systems are easy to transport
  • Climate Resistant: -30°C to 100°C
  • Waterproof: 100% watertight when tested in severe climatic conditions
  • Recyclable: polypropylene frames and steel/aluminium fixings are 100% recyclable
  • Warranty: Guaranteed for 10 years, SMABTP backed warranty
