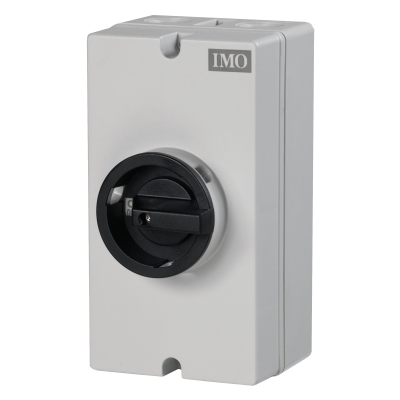

IMO DC Isolator 16A 800VDC - 2 Pole
IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.
- Manufacturer IMO Precision Controls
- Accessory Product Type Switchgear
- Commodity Code 85365080
- Dimensions (mm) (H x W x D) 180 x 98 x 107
- 16A 800 VDC
- IP66 Rated Enclosure
- 2 Pole (Single String)
- Grey Body With Black Handle
The IMO range of Solar Isolators features an operator-independent trigger ratchet switching mechanism resulting in switching times of less than 5ms; high-reliability knife edge contacts and long arc cooling chambers ensuring safe and effective isolation of DC voltages within solar installations; and additional security with IMO's patented safe lock function.
