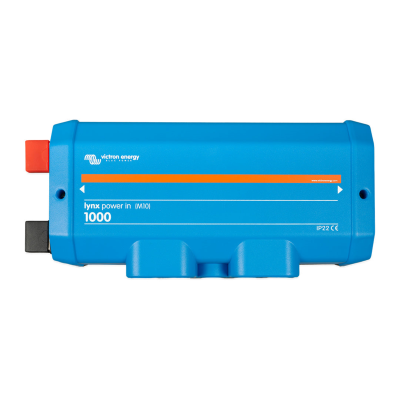

Victron Lynx Power In (M10)
SKU: LYN020102010
The Victron Lynx Power In M10 contains a positive and negative busbar with 4 connections for batteries loads or chargers and a ground connection. It is a modular DC busbar used to connect batteries to the Lynx DC distribution system.
- Manufacturer Victron Energy
- Dimensions (mm) (H x W x D) 290 x 170 x 80
- IP Rating IP22
- Voltage range 9 - 60Vdc
- Current rating 1000A
- Busbar M8
- Enclosure material ABS
- Enclosure dimensions (hxwxd) 290 x 170 x 80mm
- Busbar material Tinned copper
- Operating temperature range -40°C to +60°
- Storage temperature range -40°C to +60°
- Protection class IP22
