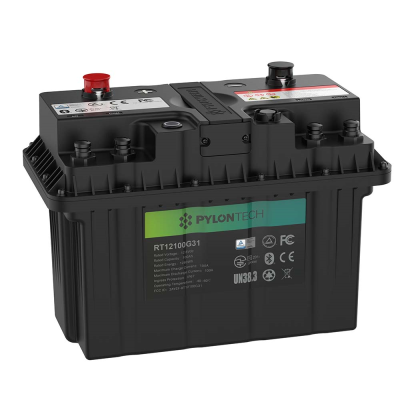

Pylon RT12100G31 12V 100Ah Lithium Battery

SKU: RT12100G31


RT12100G31 - new to CCL. The Pylontech RT12V is an all-purpose 12V Lithium-ion battery. Each battery incorporates its own battery management system with over/undervoltage and high/low temperature protection. Monitoring is available through Bluetooth or a Canbus connection.  This battery weighs 12 KG.

For systems of 24 or 48V, batteries can be connected in series.  Up to 16 batteries can be connected together to increase the systems capacity. The Pylon RT12 battery has a built-in heating film which automatically heats the battery to enable its use in minus temperature environments. The elements operates via the external charger connection.

Login to see Trade Prices
  • Manufacturer Pylon Technologies
  • Voltage 12V
  • Communication Canbus or Bluetooth
  • Commodity Code 85076000
  • Dimensions (mm) (H x W x D) 325 x 173.5 x 226
  • IP Rating IP67
  • Nominal Voltage 12.8 Volts
  • Recommended charge/discharge 50A
  • Max charge/discharge 100A
  • Working temperature -40℃ to 60℃
  • Nominal Capacity 100ah
