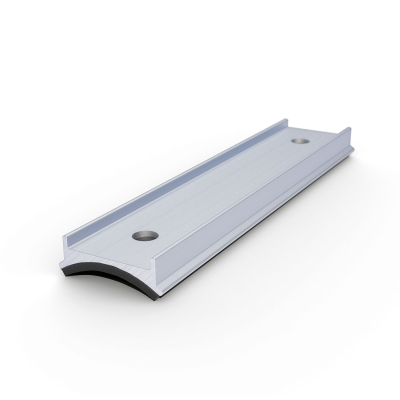

Renusol MetaSole+ Adapter Corrugated Sheet (Radius 24)
MetaSole+ is designed for PV systems mounted on trapezoidal and corrugated metal sheet roofs.
- Manufacturer Renusol
- Weight 0.0 kg
- Mounting Type On Roof
- Mounting Part Roof Anchor - Trapezoidal
- Commodity Code 76042100
- Dimensions (mm) (H x W x D) 7 x 125 x 28.92
PV-Mounting system for metal sheet roofs
The corrugated sheet adapter has been designed to act as an add on to the normal MetaSole+ landscape profile. This system allows you to reduces transport costs due to the small size, saves storage space and facilitates the handling on site. This simple system allows a quick and smooth mounting. The pre-attached EPDM strip protects the mounting surface against water intrusion. Adhesive strips ensure an easy pre-positioning of the MS+ to the assembly point.
- Application: Pitched metal sheet roof
- Material: Stainless steel, Aluminium and EPDM (pre-attached
- Module types: PV-Modules with frame height from 30 to 50 mm.
- Metal sheet thickness: Steel: 0.4 - 2.0 mm / Aluminum: 0.5 - 2.0 mm.<
