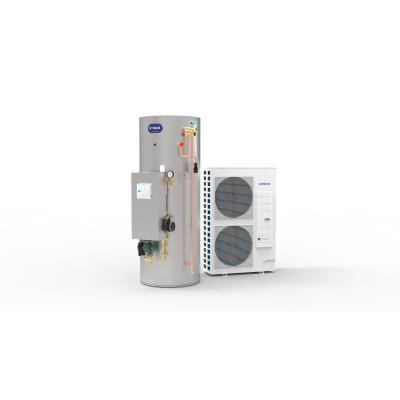

Samsung Mono 12-10.43KW 1Ph & 170L 3Z Joule Kodiak Standard Cylinder

• Manufacturer Samsung
• Commodity Code 84158300
• Dimensions (mm) (H x W x D) 940 x 1420 x 330

The Samsung G6 R32 Monobloc air source heat pump is the latest model by Samsung able to produce hot water up to 60 degrees C.

Samsung Air Source Heat Pumps are an energy-efficient system that use the heat from the ambient air for heating and hot water. By using the ambient air and transferring this heat into the house through a hydronic system, such as underfloor heating, a heat pump requires less power input and offers greater power output than conventional boilers.

Samsung air source heat pumps come with a standard 2 year warranty which can be extended to 7 years if the install is carried out and commissioned by a Samsung trained installer (MCS is not a pre-requisite for this) in accordance with Samsung installation manuals. Warranty is also subject to annual servicing.

Joule Kodiak Pre Plumb Cylinder

Available as Standard or Slimline, the Joule Kodiak Cylinder is the most innovative Pre-Plumbed solution for Samsung Air Source Heat Pump Systems. This next generation compact Pre-Plumbed pack is designed to control the distribution of heat to each zone, utilising a unique modular zonal control manifold for heating and hot water systems.

Joule have optimised the layout of the Pre-Plumb developing a Hydraulic Design whilst also making it much more simpler and quicker to install the Cylinder with improved access for the installer.

Kit Contents

12kW Samsung Heat Pump
Joule Kodiak Cylinder
Y Strainer w/isolation
28mm Iso Valves
Kodiak controller
