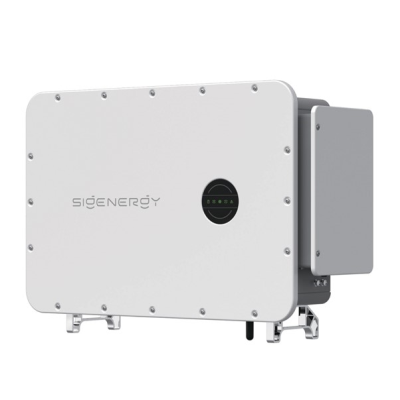

Sigenergy Sigen PV 100M1

• Manufacturer Sigenergy
• No. of MPPT 2

Engineered for large commercial rooftops and small utility arrays, the Sigenergy Sigen PV 100M1 delivers 100 kW of three-phase power in a 75 kg IP66 chassis—no external transformer, no data logger, no compromises. Eight independent MPPT trackers, each rated at 32 A and accepting the full 1 100 V DC window, let designers oversize PV up to 200 kWp (160 %) and stretch string lengths to 1 000 V without combiner boxes.

High-density performance

98.6 % peak / 98.4 % efficiency cuts thermal losses and boosts asset IRR.

< 2 % THDi preserves power quality, protecting sensitive on-site loads and satisfying stringent grid codes.

160 % PV oversizing means fewer inverters per megawatt and lower BOS cost.

Smart-air cooling maintains output up to +60 °C, while night time draw stays below 3.5 W to minimise OPEX.

Safety & compliance first

AFCI 2.0 detects serial arcs in milliseconds, instantly shutting down the affected string.

Type II DC/AC SPD, RCMU and insulation monitoring ship as standard, meeting IEC 62109-1/-2 and EN 61000-6-2/-3.

Instant reverse-polarity alert via on-board LEDs and cloud notifications prevents costly field errors.

Commercial upside

Lower levelised cost of energy – 100 kW per 0.6 m² footprint reduces racking steel, cable runs and concrete.

Rapid PTO – string auto-check and remote firmware loading mean less time on site and faster grid acceptance.

Scalable architecture – plug-and-play paralleling allows MW-scale blocks without external PLCs.

Future-proof grid support – 0.8 leading…0.8 lagging power-factor control, Q(u) and zero-export modes satisfy evolving DNO requirements.

Deploy the Sigenergy Sigen PV 100M1 to unlock high-efficiency generation, uncompromising safety and cloud-first O&M in a single installer-friendly package—keeping commercial PV projects on schedule, under budget and ready for tomorrow’s grid.
