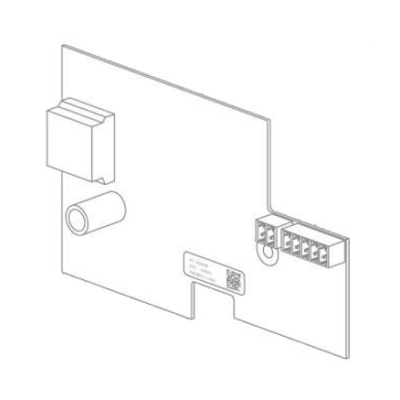

SMA Power Control Module

• Manufacturer SMA Solar
• Accessory Product Type Power Management
• Commodity Code 84159000
• Dimensions (mm) (H x W x D) 115 x 58 x 31

Following changes to legal and normative requirements in many countries, PV plants must now meet additional specifications for grid integration. As a multi-function interface, the SMA Power Control Module ensures compliance: Digital inputs implement the various specifications for the inverters. For example, the SMA Power Control Module governs remote active power limitation at 0%, 30%, 60%, and 100% of the agreed connected active power; it also permits remote shutdown and adjustment of frequency limits. In addition, the device has a multi-function relay that can be used as a fault indicator relay, to control external loads, or to charge a battery.

Flexible

• Suitable for various requirements
• 4 digital inputs, 1 multi-function relay
• Optional or available as retrofit kit

Simple & future-proof

• Functionality upgrade via firmware update
• Fast and uncomplicated installation

User-friendly

• Configuration with Sunny Explorer software version 1.05 or higher, Sunny WebBox and Sunny WebBox with Bluetooth firmware version 1.03 or higher

Complies with standards

• Satisfies requirements of key national laws and standards, such as GermanyÕšs 2012 Renewable Energy Sources Act and ItalyÕšs CEI-0-21*

Power control module for retrofit kit for:

• SB 3000TL-21/3600TL-21/4000TL-21/5000TL-21
• SB 3600SE-10/5000SE-10
• STP 20000TL-30/25000TL-30
• STP 15000TL-10
