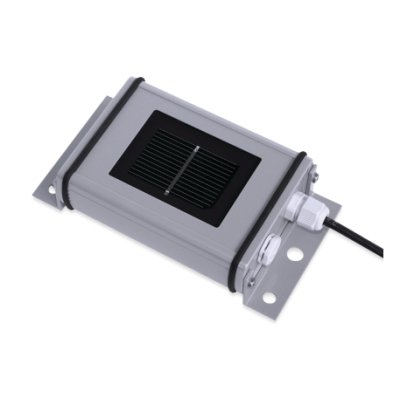

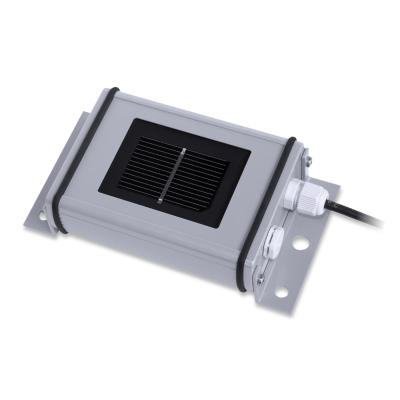

SolarEdge Irradiance Sensor

SKU: SE1000-SEN-IRR-S1

SolarEdge -SE1000-SEN-IRR-S1 Direct Irradiance Sensor 0-1.4V

Environmental sensors are used to monitor a site's irradiance, temperature and wind velocity and calculate site performance ratio.

Login to see Trade Prices
  • Manufacturer SolarEdge Technologies
  • Weight 0.3 kg
  • Accessory Product Type Sensors
  • Commodity Code 85176200
  • Dimensions (mm) (H x W x D) 40 x 86 x 154

The sensors connect to the SolarEdge Control and Communication Gateway and the measurements are displayed in the SolarEdge monitoring server.

Up to three sensors can be connected to a single Control and Communication Gateway. Additional SolarEdge sensors can be installed using multiples gateways.

  • Electrical output range: 1-1.4V
  • Measurment range: 0-1400m2
  • Enclosure type: Powder-coated aluminium
  • Operating temperature: -20 to 70°C
  • Protection rating: IP65
