Solis Current Transformer Clamp - 10m Cable (Export Limitati

• Manufacturer Solis
• Accessory Product Type CT Clamps
• Commodity Code 85045000
• Dimensions (mm) (H x W x D) 100 x 75 x 75

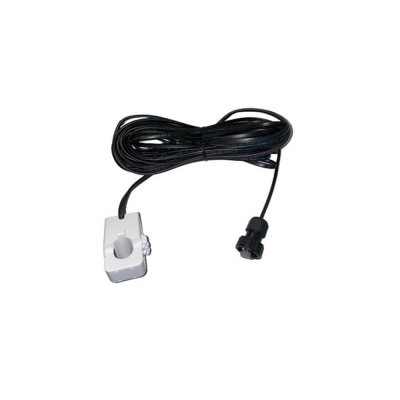

The Solis-CT-10M (CTSA16-100A/33.33 mA) is a split-core current transformer clamp designed for the export-limitation function on Solis single-phase 4G inverters. It features a primary rated current of 100 A and a secondary output of 33.33 mA, giving a CT ratio of 3000 : 1, with an accuracy class of 0.5, phase error ≤ 60 arcmin, and a burden of 10 Ω at the secondary. It withstands a power-frequency test voltage of 4 kV for 10 s, operates between 50 – 400 Hz, and is housed in a UL 94-V0 flame-retardant enclosure with a 16 mm aperture and 10 m HFZS-RVV2 cable terminating in an RJ45 plug. It is rated for –10 ℃ to +50 ℃ ambient operation and up to 95 % humidity.


Electrical Characteristics

Primary rated current: 100 A

Secondary rated current: 33.33 mA

CT ratio: 100 A : 0.03333 A → 3000 : 1 (derived)

Accuracy class: 0.5 (±0.5 % ratio error; phase error ≤ 60′)

Secondary burden: 10 Ω

Maximum continuous primary current: 120 A

Power-frequency withstand: 4000 V AC / 10 s at 1 mA

Operating frequency: 50 – 400 Hz

Mechanical Dimensions

Aperture (core opening): 16.2 mm

Overall size (L × W × H): 37.8 × 33.9 × 49 mm

Housing: White, UL94-V0 flame-retardant polymer

Cable & Connection

Cable type: HFZS-RVV2 two-core PVC-insulated flexible cable

Cable length: 10 m

Connector: Prewired RJ45 plug for direct inverter connection

Environmental & Safety

Operating temperature: –10 °C to +50 °C

Storage temperature: –20 °C to +70 °C

Relative humidity: ≤ 95 % (non-condensing)
