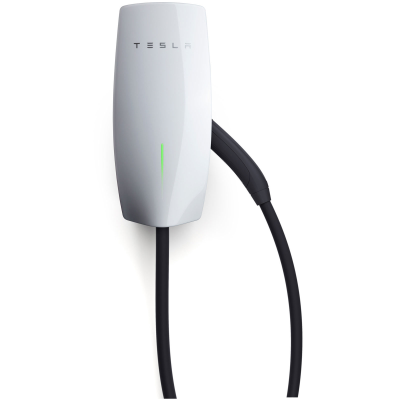

Tesla Gen 3 Wall Connector

• Manufacturer Tesla Energy

The Wall Connector is engineered for simplicity, safety, and flexibility:

Performance specifications:

• Nominal voltage: 1-phase 230 V L–N; 3-phase 230 V L–L; 3-phase 400 V L–L
• Maximum current: 32 A (installer-adjustable)
• Grounding schemes: TN/TT/IT
• Frequency: 50/60 Hz
• Means of disconnect: external branch-circuit breaker
• Residual-current detection: integrated (Type A + DC 6 mA)
• Connectivity: Wi-Fi (2.4 GHz, 802.11 b/g/n)



Environmental specifications:

• Operating temperature: –30 °C to 50 °C
• Storage temperature: –40 °C to 85 °C
• Enclosure rating: IP55 (indoor/outdoor use)



Mechanical specifications:

• Wall Connector dimensions: 345 × 155 × 110 mm
• Wire-box bracket dimensions: 250 × 120 × 50 mm
• Cable length: 7.3 m (24 ft)
• Weight (including bracket): 6.8 kg (15 lb)

Installer Advantages

• All-in-one safety – Integrated residual-current detection eliminates the need for a separate RCD.
• Flexible deployments – Installer-adjustable 32 A output and support for single- or three-phase systems fit diverse home panels.
• Weather-ready – IP55 rating removes additional weatherproofing steps for indoor or outdoor sites.
• Smart maintenance – Built-in Wi-Fi enables over-the-air firmware updates and remote diagnostics.

Compact installation – Slim 345 × 155 × 110 mm footprint and long 7.3 m cable streamline sitting.
