Tesla Powerwall Dolly Compatible with Both Powerwall 2 & 3

SKU: TESLA-1856187-00-C

1856187-00-C
NEW

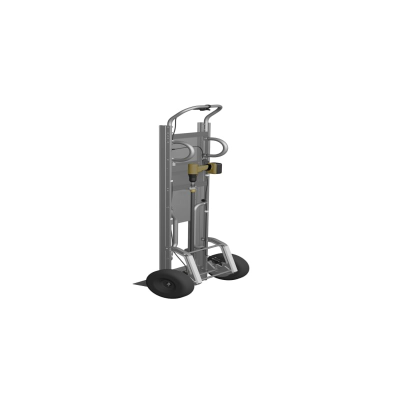

The Powerwall Dolly is a custom-designed transport and lifting tool for Powerwall units, featuring pneumatic wheels, hydraulic disc brakes, and slide rails to cross rough terrain and descend stairs. It interfaces directly with the Powerwall and uses a battery-powered drill to drive the lifting mechanism, making installation safer and faster

Seen a better price?
Login to see Trade Prices
  • Manufacturer Tesla Energy

The Powerwall Dolly is a factory-engineered accessory that simplifies the handling of Powerwall 2 and Powerwall 3 units. Key components and features include:

  1. Drill-Powered Lifting Mechanism – A lifting screw driven via a 19 mm socket by a standard battery-powered drill (impact drivers not supported) to raise and lower the Powerwall with minimal effort.
  2. Hydraulic Disc Brakes – Single-lever actuated dual disc brakes provide precise control when descending ramps or stairs.
  3. Slide Rails – Guide rails ensure the Powerwall remains perfectly aligned on the dolly during transport.
  4. Pneumatic Wheels – Robust tires that absorb shocks on uneven surfaces and rough terrain.
  5. Integrated Interface – Custom fittings lock directly into the Powerwall cabinet, eliminating straps or loose tie-downs.

Note: Battery-powered drill not included.



Installer Advantages

  • Effortless Lifting – Drill-powered mechanism eliminates manual cranking, reducing installer fatigue and risk of strain injuries.
  • Safe Transport – Pneumatic wheels and hydraulic brakes combine to navigate uneven ground and staircases with confidence.
  • Secure Mounting – Integrated slide rails and custom interface hold the Powerwall firmly, preventing slips or drops during transit.
  • Universal Compatibility – One dolly works with both Powerwall 2 and Powerwall 3 models, streamlining tool inventories.



Technical Highlights That Close the Sale

  • Dimensions: 1690 × 593 × 461 mm
  • Weight: 24 kg
  • Maximum Install Height: 686 mm to base of Powerwall
  • Maximum Lift Capacity: 136 kg
  • Lifting Mechanism: Lifting screw via 19 mm socket (drill-powered)
  • Brake Type: Single-lever actuated dual hydraulic disc brakes
  • Wheel Type: Pneumatic tires
  • Model Number: 1856187-xx-y



Compatibility: Powerwall 2, Powerwall 3
