Victron Ekrano GX
SKU: BPP900480100

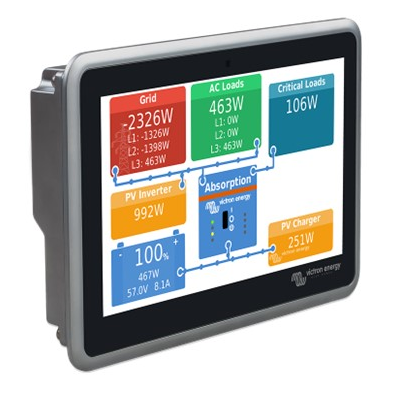

The Victron Energy Ekrano GX is a fully encapsulated all-in-one system consisting of a GX device and a waterproof 7” display.
Higher processing power (up to 25 VE.Direct devices) and perfect protection from the elements make this Victron Ekrano the perfect choice for installations where nothing should be left to chance and the electronics must be well protected. The elimination of the HDMI connection between the computer and the screen also eliminates another source of error.
Perfectly suited for installation in demanding environments such as ships.
- Manufacturer Victron Energy
- Commodity Code 85419000
- Dimensions (mm) (H x W x D) 115 x 260 x 300
Communication Centre
This GX communication centre allows you to always have perfect control over your system from any location and to maximize its performance.
Easily access your system via our Victron Remote Management (VRM) portal or access your system directly using the integrated touch screen a multifunction display (MFD) or the VictronConnect app. Wireless sensors e.g. from RUUVI or MOPEKA can also be read out via one (or more) USB Bluetooth adapters.
Remote Console on the VRM
Monitoring controlling and configuring the Victron Energy Ekrano GX remotely via the internet. Just as if you were standing in front of the device with Remote Console. The same functionality is also available in the local area network LAN or via the WLAN access point of the Ekrano GX.
Perfect monitoring & control
Instantly monitor battery state of charge power consumption PV generator and grid energy production or check tank levels and temperature readings. Easily control the current limit for shore power the (automatic) start/stop generator(s) or change any settings to optimize the system. Follow-up on alerts perform diagnostic reviews and troubleshoot complications remotely.
With the integrated 7-inch touchscreen you can get an overview of your system and adjust settings in no time at all. Its slim waterproof design offers a lot of flexibility in creating a clean and uncluttered dashboard. Touch functionality can be disabled (or enabled) via a recessed button on the back to prevent unauthorized use.
Easy assembly and configuration
The Ekrano GX is particularly easy to assemble thanks to the combination of computer and touchscreen in one device. Its integrated touchscreen is waterproof so it can also be installed outdoors. Bluetooth functionality allows for quick connection and configuration via the VictronConnect app (available for Android iOS Windows and Mac OS).
