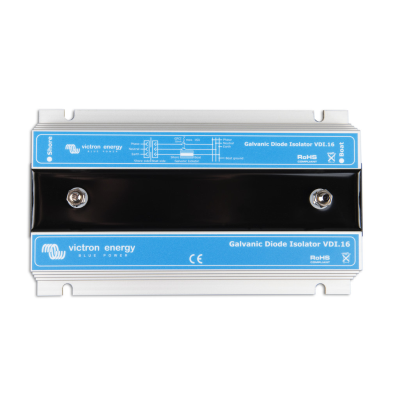

Victron Galvanic Isolator VDI-16A

SKU: GDI000016000

The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.



Login to see Trade Prices
  • Manufacturer Victron Energy
  • Weight 1.0 kg
  • Accessory Product Type Battery Isolators & Combiners
  • Commodity Code 85411000
  • Dimensions (mm) (H x W x D) 60 x 120 x 200

The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
