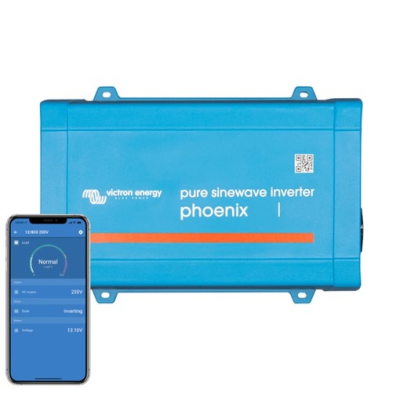

Victron Phoenix Inverter 48V/800VA/230V VE.Direct with IEC Socket

SKU: PIN481801100

PIN481801100

The Phoenix 48/800 VE.Direct inverter allows you to power domestic equipment – requiring 230V – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

This unit has the IEC plug.



Features of the Phoenix Inverter 48/800 VE.Direct

VE.Direct communication port

The VE.Direct port can be connected to:



Fully configurable:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage 210 – 245V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level



Monitoring:

  • In- and output voltage, % load and alarms

Seen a better price?
Login to see Trade Prices
  • Commodity Code 85044083

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 48/800 VE.Direct are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.



High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.



ECO mode

When in ECO mode, the Phoenix Inverter 48/800 VE.Direct will switch to standby when the load decreases below a pre-set value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a pre-set level, the inverter will remain on.



Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.



DC connection with screw terminals

No special tools needed for installation.



Monitor, operate & control your system

VictronConnect lets you get live status information and configure your Phoenix Inverter 248/800 VE.Direct when connected to a VE.Direct Bluetooth Smart Dongle.



The REC040010210R is the correct controller for the Phoenix Inverter VE.Directs.
