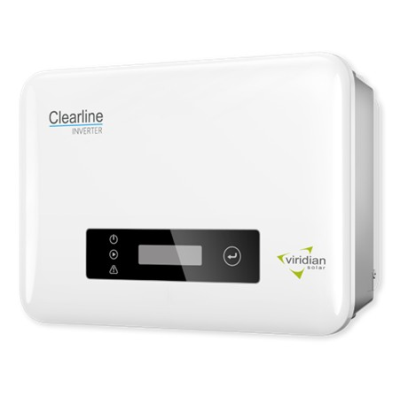

Viridian Clearline Inverter - Solar Inverter 1.0kW with Integrated DC Isolator Switch - Single MPPT

• Manufacturer Viridian Solar
• Phases 1 Phase
• No. of MPPT 1

The Viridian Clearline Inverter - Solar Inverter 1.0kW with Integrated DC Isolator Switch - Single MPPT is a compact, high-performance solution engineered to maximise the efficiency of modern solar installations. Designed for both residential and small-scale commercial projects, it combines technical innovation with ease of installation, offering an exceptional choice for installers and system designers.

Key features of the Viridian Clearline Inverter - Solar Inverter 1.0kW with Integrated DC Isolator Switch - Single MPPT include a factory-fitted DC isolator for enhanced on-site safety and a discreet, lightweight design with a footprint comparable to an A4 sheet of paper. Thanks to its natural convection cooling system, the unit operates whisper-quietly, making it ideal for noise-sensitive environments.

Performance is enhanced through a low start-up voltage, ensuring generation begins earlier in the day and extends longer into low-light conditions. With an impressive maximum efficiency of 97.2% and European efficiency of 96.4%, users can expect reliable, optimised energy yield across varying weather conditions.

Key technical specifications:

Nominal Output Power: 1,000W

Max. AC Active Power: 1,100W

Operating Voltage Range (MPPT): 40–450V

Max. Input Voltage: 500V

Max. Input Power: 1,500W

Communication Options: WiFi or LAN

Ingress Protection: IP65-rated for durability

Weight: Only 5.8kg

Dimensions: 295 x 230 x 113mm

Additional benefits include integrated AFCI, DC/AC surge protection, and advanced remote shutdown options, ensuring both user and system protection at the highest levels. The inverter also features a user-friendly interface through LED, LCD, WLAN, and mobile app integration.

The Viridian Clearline Inverter - Solar Inverter 1.0kW with Integrated DC Isolator Switch - Single MPPT comes backed by a solid 10-year warranty and full technical support, providing peace of mind for installers and end users. Its suitability for PV arrays ranging from 0.67kWp up to 4.5kWp DC makes it highly versatile for a broad range of system sizes.

Viridian Solar’s commitment to innovation and UK-based technical support make the Clearline range a dependable and future-proof choice for professional solar projects globally.
