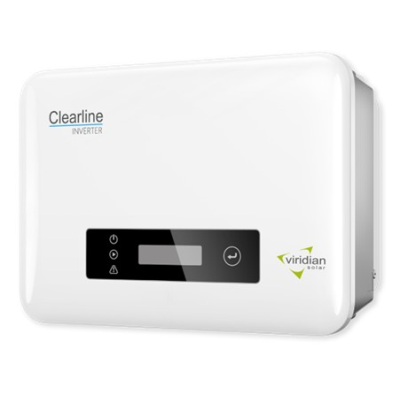

Viridian Clearline Inverter - Solar Inverter 1.5kW with Integrated DC Isolator Switch - Single MPPT

• Manufacturer Viridian Solar
• No. of MPPT 1
• IP Rating IP65

Introducing the Viridian Clearline Inverter - 1.5kW Solar Performance
The Viridian Clearline Inverter - Solar Inverter 1.5kW with Integrated DC Isolator Switch - Single MPPT is crafted for optimal performance in residential and small commercial solar installations. With a compact A4-sized footprint and whisper-quiet operation, it integrates seamlessly into system designs while ensuring maximum energy harvest, even under challenging light conditions.

Key Features

Efficient Power Output: 1,500W nominal output, with a maximum AC active power of 1,650W.

Integrated Safety: Factory-fitted DC isolator switch enhances system safety and simplifies regulatory compliance.

Smart Monitoring: Built-in LED, LCD display, WiFi, and app-based interfaces for real-time energy monitoring and optional export limitation.

Advanced Protection: Integrated AFCI, residual current monitoring, DC/AC surge protection, and remote shutdown features for increased safety.

Installer and Customer Benefits
The Viridian Clearline Inverter - Solar Inverter 1.5kW with Integrated DC Isolator Switch - Single MPPT enables installers to deliver superior energy solutions by offering:

Quick and simple installation with plug-and-play AC and MC4 DC connectors.

Silent operation using natural convection cooling with no moving parts.

High European efficiency of 96.6% for superior energy generation.

A 10-year warranty supported by UK-based technical and design assistance.

Technical Specifications

Nominal Output Power: 1,500W

Maximum Efficiency: 97.3%

Operating Temperature Range: -25°C to +60°C

Dimensions: 295 x 230 x 113 mm

Ingress Protection: IP65-rated for indoor and outdoor installation

Conclusion
Delivering robust performance, integrated safety features, and smart energy management, the Viridian Clearline Inverter - Solar Inverter 1.5kW with Integrated DC Isolator Switch - Single MPPT is an ideal choice for modern renewable energy projects across the UK and European markets. It combines advanced features with reliability to meet growing energy demands.
