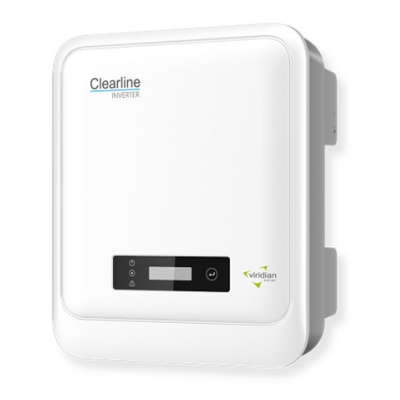

Viridian Clearline Inverter - Solar Inverter 3.0kW with Integrated DC Isolator Switch - Dual MPPT

• Manufacturer Viridian Solar
• Phases 1 Phase
• IP Rating IP65

The Viridian Clearline Inverter - Solar Inverter 3.0kW with Integrated DC Isolator Switch - Dual MPPT is designed to deliver maximum performance in a compact, discreet footprint. Perfect for residential and small commercial solar installations, this single-phase inverter combines advanced safety features, smart monitoring capabilities, and superior generation efficiency.

Built with an integrated DC isolator switch, the inverter enhances onsite safety, meeting the highest standards for system protection. With a 10-year warranty and UK-based technical support, it ensures long-term reliability and peace of mind for installers and end-users alike.

Optimised for installations ranging from 0.67kWp to 4.5kWp, the Viridian Clearline Inverter - Solar Inverter 3.0kW with Integrated DC Isolator Switch - Dual MPPT features a low start-up voltage and a wide MPPT range (50V to 550V), allowing earlier and longer daily energy production. Its high maximum efficiency of 97.6% and whisper-quiet natural convection cooling system make it a perfect choice for premium solar solutions.

Key Features:

High Efficiency: Achieves up to 97.6% maximum efficiency for optimised power generation.

Smart Monitoring: Built-in Wi-Fi or LAN connectivity for real-time performance tracking via LED, LCD, or mobile app.

Enhanced Safety: Factory-fitted DC isolator switch, AFCI protection, residual current monitoring, and surge protection included.

Dual MPPT: Flexibility to maximise energy harvest from different panel orientations or arrays.

Durable Design: IP65 rating ensures full protection against dust and water ingress, ideal for outdoor installations.

Lightweight and Compact: At just 5.8kg and the size of an A4 sheet, it offers easy, flexible installation.

Quiet Operation: Noise emission of less than 30dB for unobtrusive system performance.

Technical Highlights:

Output Power: 3.0kW

Maximum AC Power: 3.3kW

Nominal Voltage: 220/230V

European Efficiency: 97.2%

Maximum Efficiency: 97.6%

Weight: 5.8kg

Dimensions: 295mm x 230mm x 113mm

Operating Temperature Range: -25°C to +60°C

MPPT Voltage Range: 50V to 550V
