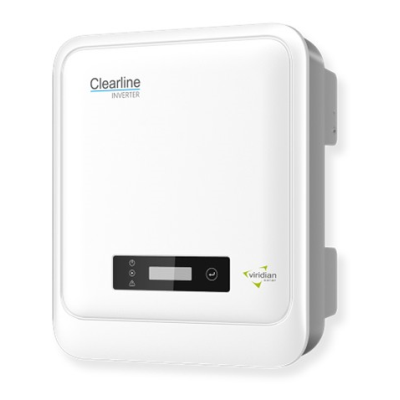

Viridian Clearline Inverter - Solar Inverter 5.0kW with Integrated DC Isolator Switch - Dual MPPT

• Manufacturer Viridian Solar
• Phases 1 Phase
• IP Rating IP66

Viridian Clearline Inverter - Solar Inverter 5.0kW with Integrated DC Isolator Switch - Dual MPPT

The Viridian Clearline Inverter - Solar Inverter 5.0kW with Integrated DC Isolator Switch - Dual MPPT is a cutting-edge solution engineered for high-performance solar installations. Designed with installers in mind, this inverter combines superior efficiency, easy integration, and advanced safety features, making it a top choice for residential and commercial applications.

Key Features:

• High Efficiency: Achieves a maximum efficiency of 97.9% and a European efficiency of 97.3%, ensuring optimal power conversion and maximising system performance.
• Smart Control: Equipped with LED indicators, an LCD screen, and WiFi/LAN connectivity, the inverter supports generation monitoring and optional export limitation through a user-friendly app.
• Dual MPPT: With two independent MPPT trackers, it enables flexible system design and optimises energy harvest from arrays facing different directions.
• Durable and Reliable: Housed in an IP66-rated enclosure, the inverter is resistant to dust, water, and harsh environmental conditions, ensuring longevity and minimal maintenance.
• Safety Built-In: Features a factory-fitted DC isolator switch for added safety and integrates multiple layers of protection including AFCI, residual current monitoring, and DC/AC surge protection.
• Quiet Operation: Designed with natural convection cooling, the unit operates silently with noise levels kept below 25dB, ideal for residential environments.
• Technical Specifications:
• Nominal Output Power: 5,000W
• Maximum Input Power: 7,500W
• Start-Up Voltage: 50V
• Maximum Input Voltage: 600V
• Nominal Input Voltage: 360V
• MPPT Voltage Range: 40V to 560V
• Maximum Output Current: 24.0A
• Operating Temperature Range: -25°C to +60°C
• Weight: 13.4kg
• Dimensions: 350mm x 410mm x 143mm

Benefits for Installers and Customers:

Quick and simple installation with plug-and-play AC connectors and MC4 DC connectors.

Lightweight design and compact dimensions facilitate easy handling and mounting.

Long-term performance backed by a 10-year manufacturer’s warranty.

Ideal for solar PV systems sized between 3.6kWp and 9.0kWp DC.

The Viridian Clearline Inverter - Solar Inverter 5.0kW with Integrated DC Isolator Switch - Dual MPPT offers an exceptional combination of efficiency, safety, and reliability. It’s a smart investment for installers seeking quality and long-term customer satisfaction in today’s competitive solar market.
