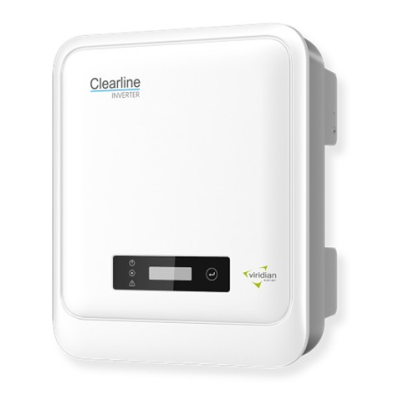

Viridian Clearline Inverter - Solar Inverter 6.0kW with Integrated DC Isolator Switch - Dual MPPT

• Manufacturer Viridian Solar
• Phases 1 Phase
• No. of MPPT 2
• Inverter Brand Viridian Clearline Inverter

Designed in the UK, the Viridian Clearline Inverter – Solar Inverter 6.0 kW with Integrated DC Isolator Switch – Dual MPPT delivers the power, safety and monitoring of today's installers demand, without the bulk or fan noise of legacy inverters. At only 13.4 kg and 350 × 410 × 143 mm, it’s easy for one person to install onto a wall bracket, yet it pushes out 6,000 W AC continuously from arrays up to 9 kWp DC ​.

.

Installer-focused power electronics

• Integrated DC isolator – factory-fitted rotary switch speeds compliance with BS 7671 and removes an extra enclosure ​.
• Dual MPPT architecture – two independent trackers (16 A / 40~560 V each) handle split-orientation strings for higher yield on complex roofs ​.
  Natural-convection cooling – no fans, < 25 dB operation and IP66 aluminium housing for silent lofts or external walls ​.
• High conversion efficiency – 97.9 % peak, 97.4 % European keeps ROI strong even in UK irradiance ​.
• Comprehensive protection – PV insulation Resistance Detection, Residual Current Monitoring, AC + DC Type III surge protection and grid-code anti-islanding built in​.


Smart controls out of the box

• (optional) Wi-Fi & LAN connectivity for real-time data, firmware updates and export-limitation setup via the Viridian app, (WIFI/LAN kit module required).
  LED + LCD status makes on-site commissioning fool-proof; key parameters scroll at the press of a button ​.
• Optional CT enables G100 Export limitation without external gateways.


Why stock the Viridian Clearline Inverter 6 kW?

• Labour savings – built-in DC isolator, plug-and-play AC connector and lightweight chassis cut roof time.
• Design flexibility – wide MPPT window and dual trackers pair perfectly with mixed-pitch arrays and optimised strings.
• Service simplicity – fan-less topology, IP66 seal and remote diagnostics reduce call-backs and O&M costs.

Local support – Cambridge-based technical line and next-day spares keep projects on schedule ​.
